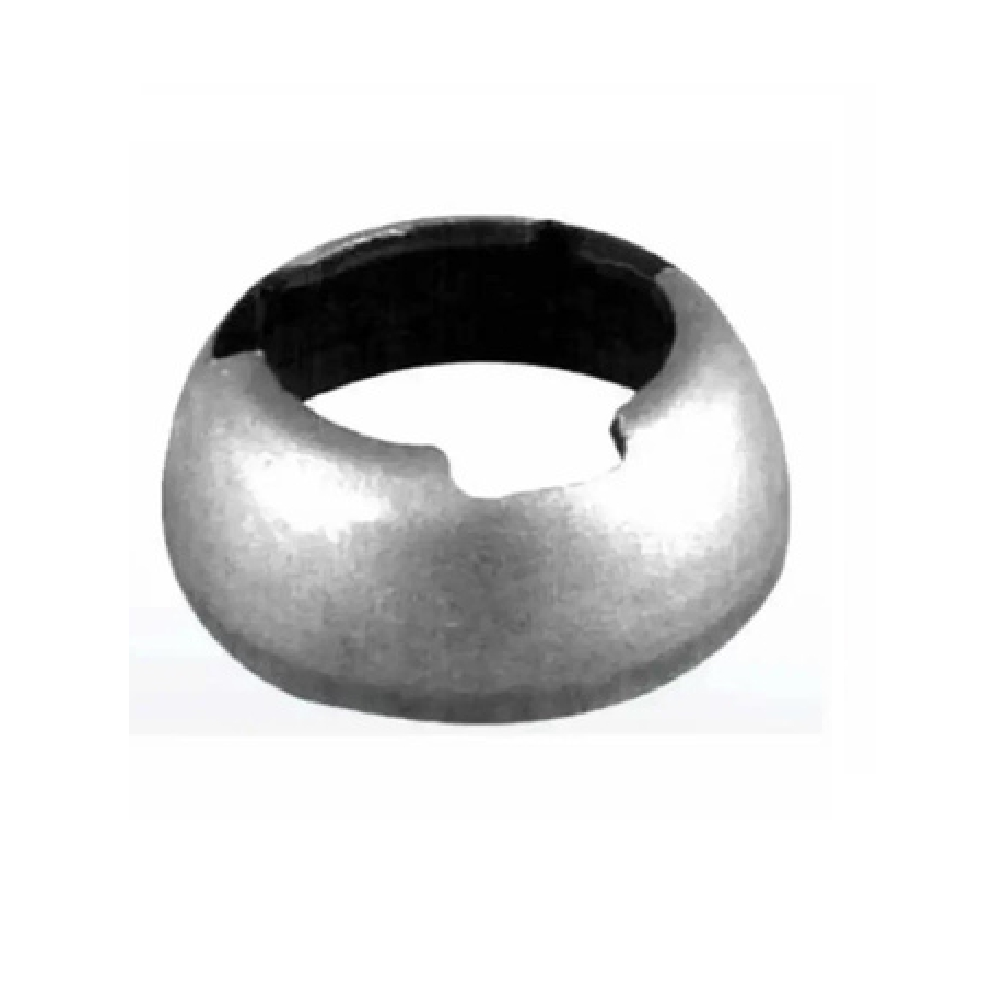

BOTTOM CUP

Bottom cup scaffolding is a crucial component of scaffolding systems used in construction projects, providing support, stability, and access for workers and materials at elevated heights. Here’s a brief overview of bottom cup scaffolding:

Functionality: Bottom cup scaffolding, also known as base plate scaffolding, is a type of scaffolding system that serves as the foundation or base structure for erecting scaffolds. It consists of vertical standards or upright tubes connected to base plates at the bottom, providing stability and support for the scaffold structure. The bottom cups, also known as base cups, are components attached to the base plates that secure the vertical standards in place and distribute the load evenly on the ground surface.

Construction and Components: Bottom cup scaffolding typically comprises the following components:

1. Standards: Vertical tubes or uprights that support the scaffold structure and connect to the base plates.
2. Base Plates: Flat plates placed at the bottom of the scaffold structure to distribute the load and provide stability.
3. Bottom Cups: Components attached to the base plates that secure the standards in place and prevent lateral movement.

Assembly and Installation: Assembly of bottom cup scaffolding involves erecting the vertical standards and connecting them to the base plates using bottom cups. The base plates are positioned on a stable and level surface to ensure proper weight distribution and stability. The standards are then inserted into the bottom cups and secured in place, forming the framework for the scaffold structure. Additional components, such as horizontal ledgers, transoms, and diagonal braces, are added to complete the scaffold system.

Applications: Bottom cup scaffolding is commonly used in construction projects of various scales, including building construction, renovation, maintenance, and repair works. It provides safe access for workers and equipment to perform tasks at elevated heights, such as painting, plastering, bricklaying, and facade installation.

Advantages: Bottom cup scaffolding offers several advantages:

• Quick and easy assembly
• High load-bearing capacity
• Stability and safety for workers
• Versatility for use in different construction applications
• Compatibility with other scaffolding components and systems
